Precision Pneumatic Solutions for Semiconductor Manufacturing and Cleanroom Environments
In the high-stakes world of semiconductor manufacturing, even the smallest contaminant can compromise entire batches of silicon wafers. Maintaining an ultra-clean, controlled environment is critical. Achieving this requires high-performance pneumatic components specifically designed for ISO Class 6 cleanrooms, where precision and reliability are non-negotiable Bangalore

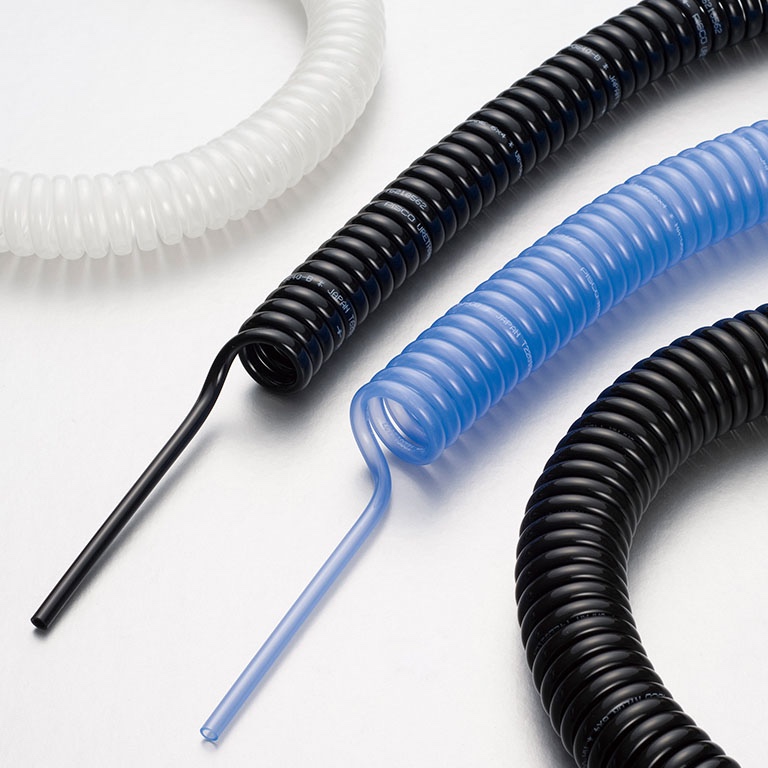

Essential Tubing for High-Purity Applications
Selecting the right tubing is the first step in ensuring a leak-proof and contamination-free pneumatic system.
SFT (Fluororesin PFA) Tube: These tubes are the gold standard for semiconductor manufacturing due to their exceptional chemical resistance and wide operating temperature range of -65 to 260°C. They are ideal for conveying air, water, and aggressive chemicals without degradation.
SET (Fluororesin FEP) Tube: A more cost-effective alternative to PFA, FEP tubes still offer superior chemical and weather resistance, with a temperature range up to 200°C. They are frequently used in cleanroom packaging to minimize dust adhesion.
UB (Soft Polyurethane) Tube: Known for its excellent flexibility and small bending radius, the UB series is perfect for compact machine layouts. It is typically used for general pneumatic piping where extreme chemical resistance isn't required.
Specialized Fittings for Cleanroom Integrity
Fittings must provide secure connections while resisting corrosion and minimizing particle generation.
SUS316 Fittings: Crafted from high-grade 316 stainless steel, these push-in fittings offer outstanding corrosion resistance. They are essential for harsh environments like chemical plants and pharmaceutical-grade semiconductor lines.
PP (Polypropylene) Fittings: Specifically designed for clean environments, the body is made of PP resin. These fittings often come in cleanroom-specific packaging and utilize SUS304 or SUS316 metal parts for added durability.
Standard Fittings: For non-critical areas of the production line, standard push-in fittings provide a reliable and quick tool-free installation for general compressed air systems.
Vacuum Technology for Delicate Handling
Vacuum systems are vital for the “pick-and-place“ operations that move fragile wafers and chips.
Vacuum Generators (Ejectors): These compact, lightweight devices use the Venturi effect to quickly create a vacuum using only compressed air. Models like the Pisco VSE10-601J are favored for their high vacuum degree (-92 kPa) and energy-efficient design.
Vacuum Suction Cups: Non-marking suction cups and micro-vacuum pads allow for the delicate handling of silicon wafers and MEMS devices. These components are designed to prevent scratches, cracks, or electrostatic discharge (ESD) damage during high-speed automation.
By integrating specialized Pisco pneumatic solutions—from corrosion-resistant SUS316 fittings to cleanroom-packaged SFT tubing—manufacturers can significantly reduce downtime, increase yield, and ensure the production of high-quality semiconductor units.
