Hard Chrome Linear Shaft Bangalore
In modern manufacturing, smooth and reliable motion systems are essential for productivity. Whether it is industrial automation, robotics, CNC machines, packaging equipment, or special-purpose machines, one component quietly ensures accuracy and durability
The Hard Chrome Linear Shaft.
For design engineers, maintenance teams, OEM machine builders, and industrial buyers, selecting the right linear shaft directly impacts machine life, performance, and maintenance cost. This guide explains everything you need to know about hard chrome plated linear shafts and why they are becoming a top Google search topic in the automation industry.

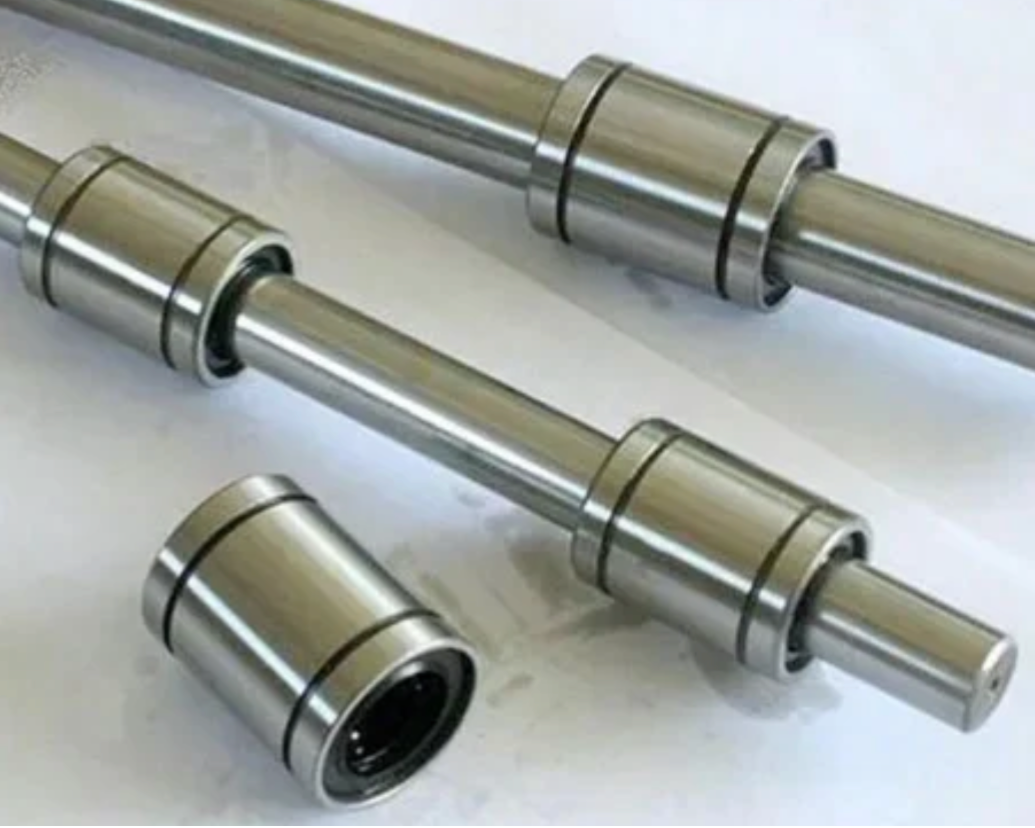

What is a Hard Chrome Linear Shaft?
A Hard Chrome Linear Shaft is a precision ground steel shaft coated with a hard chrome plating layer. This plating improves:
Surface hardness
Wear resistance
Corrosion resistance
Smooth movement for linear bearings
These shafts are widely used with linear motion bearings, LM blocks, robotic slides, pneumatic actuators, and automation assemblies.
Typical materials include:
Induction hardened carbon steel
Alloy steel
Chrome plated precision ground shafts
The hard chrome plating thickness usually ranges from 20–30 microns, ensuring long service life even in high-speed automation systems.
Why Hard Chrome Linear Shafts are Critical for Automation
Industrial automation systems require high precision and low friction movement. Hard chrome shafts deliver exactly that.
Key Advantages
1. High Surface Hardness
Hard chrome shafts typically reach HRC 58–65 hardness, providing superior resistance to scratches and wear.
2. Precision Motion
They are ground to tight tolerances (h6, h7) to ensure smooth compatibility with linear ball bearings and bushings.
3. Corrosion Resistance
Chrome plating protects the shaft from rust, making it ideal for:
Electronics manufacturing
Food processing automation
Pharmaceutical machines
Packaging lines
4. Long Service Life
Compared to untreated shafts, chrome plated shafts can increase machine life by 3–5 times.
Applications in Robotics and Industrial Automation
Hard chrome linear shafts are widely used across many industries.
Robotics Industry
Robot slide units
Pick-and-place robots
Vacuum handling systems
Cartesian robots
Industrial Automation
Linear guide systems
Pneumatic automation machines
Conveyor automation
Assembly machines
OEM Machine Building
CNC machinery
Packaging machines
Printing machines
Semiconductor equipment
For robotic pick-and-place systems, smooth linear movement is critical for vacuum grippers and suction cup automation systems used in electronics manufacturing.
Technical Specifications of Hard Chrome Linear Shafts
Common specifications include:
Material
C45 Steel /EN8
SUJ2 bearing steel
Surface Hardness 58–65 HRC
Surface Finish Ra 0.2 – 0.4 µm
Straightness < 0.03 / 1000 mm
Diameter Range 6 mm to 80 mm
Length Up to 6 meters
These parameters ensure high precision motion control, which is essential for robotics and automation systems.
Selection Guide for Design Engineers
Choosing the right linear shaft requires careful engineering consideration.
>Load Capacity
Calculate the dynamic and static load applied by bearings.
>Shaft Diameter
Larger diameters provide better rigidity and lower deflection.
>Surface Finish
Better surface finish ensures longer bearing life and lower friction.
>Environmental Conditions
For harsh environments, consider:
>Stainless shafts
Nickel plating
>Protective bellows
Maintenance Tips for Hard Chrome Linear Shafts
Even the best linear shafts require proper maintenance.
Lubrication
Use high-quality linear guide grease or oil to reduce wear.
Contamination Control
Dust and particles are the biggest enemies of linear systems. Use:
Protective covers
Wipers on linear bearings
Regular Inspection
Maintenance engineers should check:
Surface scratches
Bearing noise
Shaft alignment
Preventive maintenance can reduce machine downtime significantly.
Why OEM Manufacturers Prefer Hard Chrome Shafts
OEM machine builders prefer hard chrome shafts because they offer:
High reliability
Global standard compatibility
Easy replacement
Lower maintenance cost
Long operational life
For industries like electronics manufacturing, robotics integration, and industrial automation, hard chrome shafts are a cost-effective motion solution.
