Aluminium profile framing systems are widely used in industrial automation, machine building, electronics manufacturing, robotics, and modular workstations. These systems are built using T-slot aluminium profiles and compatible accessories, allowing engineers and manufacturers to assemble strong, lightweight, and highly flexible structures without welding.
Modern industries prefer aluminium profile systems because they are modular, reusable, corrosion-resistant, and easy to assemble or modify. By combining aluminium extrusion profiles with accessories such as connectors, brackets, nuts, plates, hinges, and guides, companies can create complete framing systems for machines, safety guards, automation cells, and workstations.
What is an Aluminium Profile Framing System?
An aluminium profile framing system is a modular structural system made from extruded aluminium profiles with T-slot grooves. These slots allow accessories and connectors to be inserted anywhere along the profile, making assembly flexible and adjustable.
Key advantages include:
Modular and expandable structures
Fast assembly without welding
Lightweight but high strength
Easy maintenance and upgrades
Compatible with automation components
These features make aluminium profiles ideal for automation equipment, robotics frames, conveyor structures, and industrial workstations.

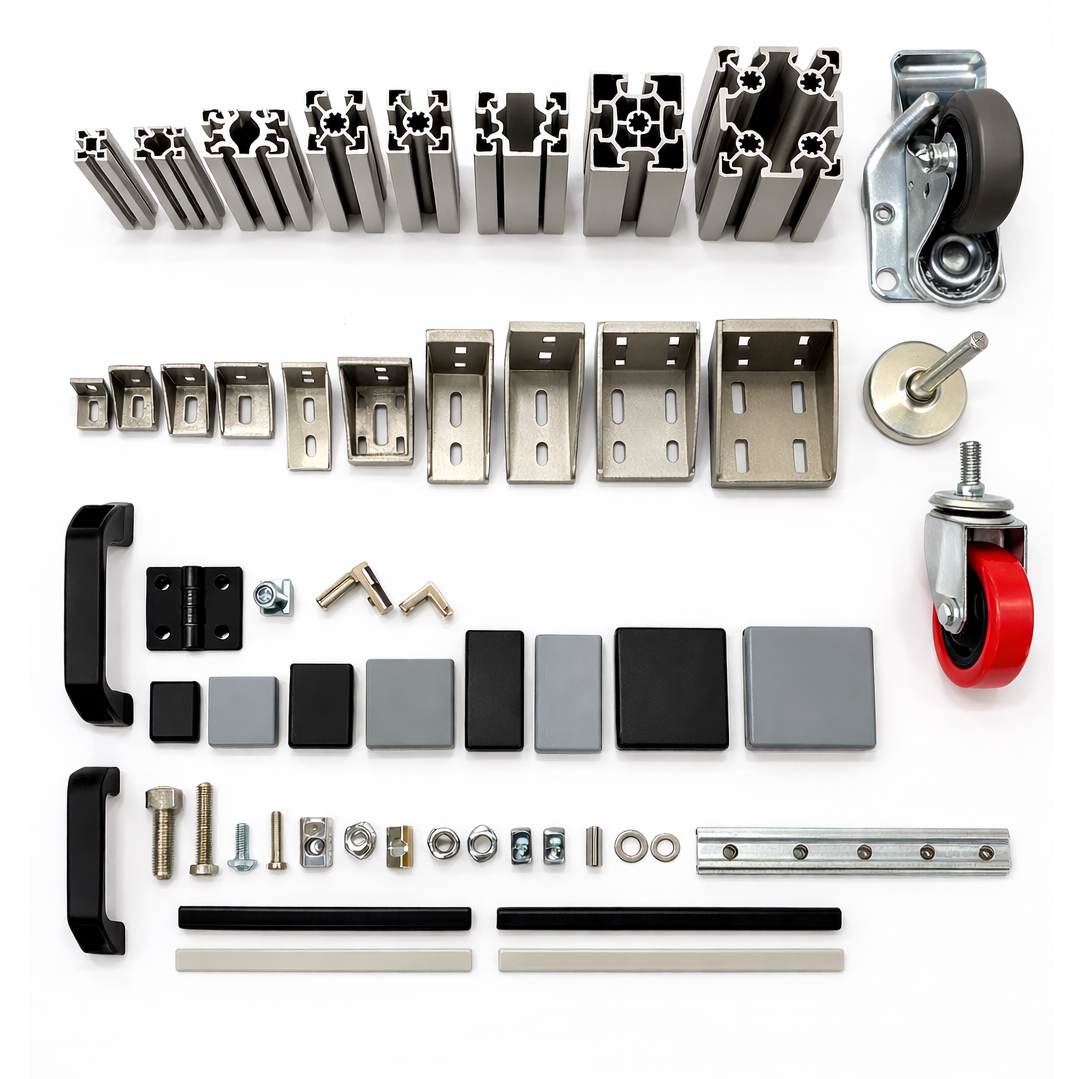

Essential Aluminium Profile Accessories for Complete Framing Systems
A complete aluminium framing system requires several accessories that ensure strong connections and functional structures.
1. Aluminium Profile Connectors
Aluminium profile connectors are essential components used to join two or more aluminium extrusions together.
Types of connectors include:
Anchor connectors
Linear connectors
Inner connectors
Tri-corner connectors
These connectors allow engineers to build complex machine frames, automation bases, and robot structures quickly and reliably.
Applications:
Machine bases
Robotics frames
Industrial enclosures
Conveyor structures
2. Aluminium Profile Brackets
Brackets are among the most commonly used accessories in aluminium profile structures. They provide strong angular connections between profiles.
Common types include:
Corner Brackets
Corner brackets are L-shaped components used to join aluminium profiles at 90-degree angles for strong frame corners.
Angle Brackets
Used for 45° or adjustable angles in machine frames or custom structures.
External and Internal Brackets
External brackets are visible and easy to assemble, while internal brackets provide hidden connections and cleaner design.
Brackets are widely used in:
CNC machine frames
3D printers
Industrial workstations
Robot structures
3. T-Slot Nuts for Aluminium Profiles
T-slot nuts are one of the most important fastening elements in aluminium profile systems. They slide into the T-slot channel and provide threaded holes for bolts.
Common types include:
Sliding T-nuts
Hammer nuts
Spring-loaded T-nuts
Available thread sizes include:
M4
M5
M6
M8
These nuts allow engineers to attach accessories anywhere along the aluminium profile.
4. Aluminium Profile Joining Plates
Joining plates are flat plates used to connect two profiles side-by-side or reinforce joints.
Benefits:
Increased structural strength
Improved alignment of profiles
Strong support for heavy machine frames
These plates are commonly used in industrial automation frames and large equipment structures.
5. Aluminium Profile Corner Brackets
Corner brackets are designed specifically to create rigid frame corners in aluminium structures.
Features:
90° structural connection
High load-bearing capacity
Easy assembly using T-nuts and bolts
These brackets are commonly used for:
Machine enclosures
Automation frames
Assembly tables
6. Aluminium Profile End Caps
End caps are protective accessories placed at the ends of aluminium profiles.
Benefits:
Prevent dust and debris from entering the profile
Improve safety by covering sharp edges
Provide a clean and professional appearance
End caps are typically made of durable polymer plastic and available in black or grey colors.
7. Aluminium Profile Linear Guide Frames
Aluminium profiles are often used to build linear motion structures for automation systems.
Typical components include:
Linear guide rails
Motion systems
Robot axis structures
These frames provide precision movement for pick-and-place machines, conveyors, and robotic systems.
8. Aluminium Profile Mounting Plates
Mounting plates allow components to be attached directly to aluminium frames.
Common uses include:
Servo motors
Sensors and cameras
PLC panels
Control boxes
They help engineers integrate automation equipment into aluminium structures quickly.
9. Aluminium Profile Hinges
Hinges are used when aluminium frames require doors, access panels, or movable covers.
Typical applications:
Machine safety guards
Industrial cabinets
Automation cells
Profile hinges
