HIWIN Linear Guideways: The Ultimate Selection and Maintenance Guide (2026)
In the world of precision automation, HIWIN linear guideways have become the industry standard for achieving high-positioning accuracy and smooth linear motion. Whether you are retrofitting a CNC machine or designing a high-speed semiconductor assembly line, choosing the right series is a balance between load capacity, space constraints, and environmental factors.
1. Understanding the Core Technology

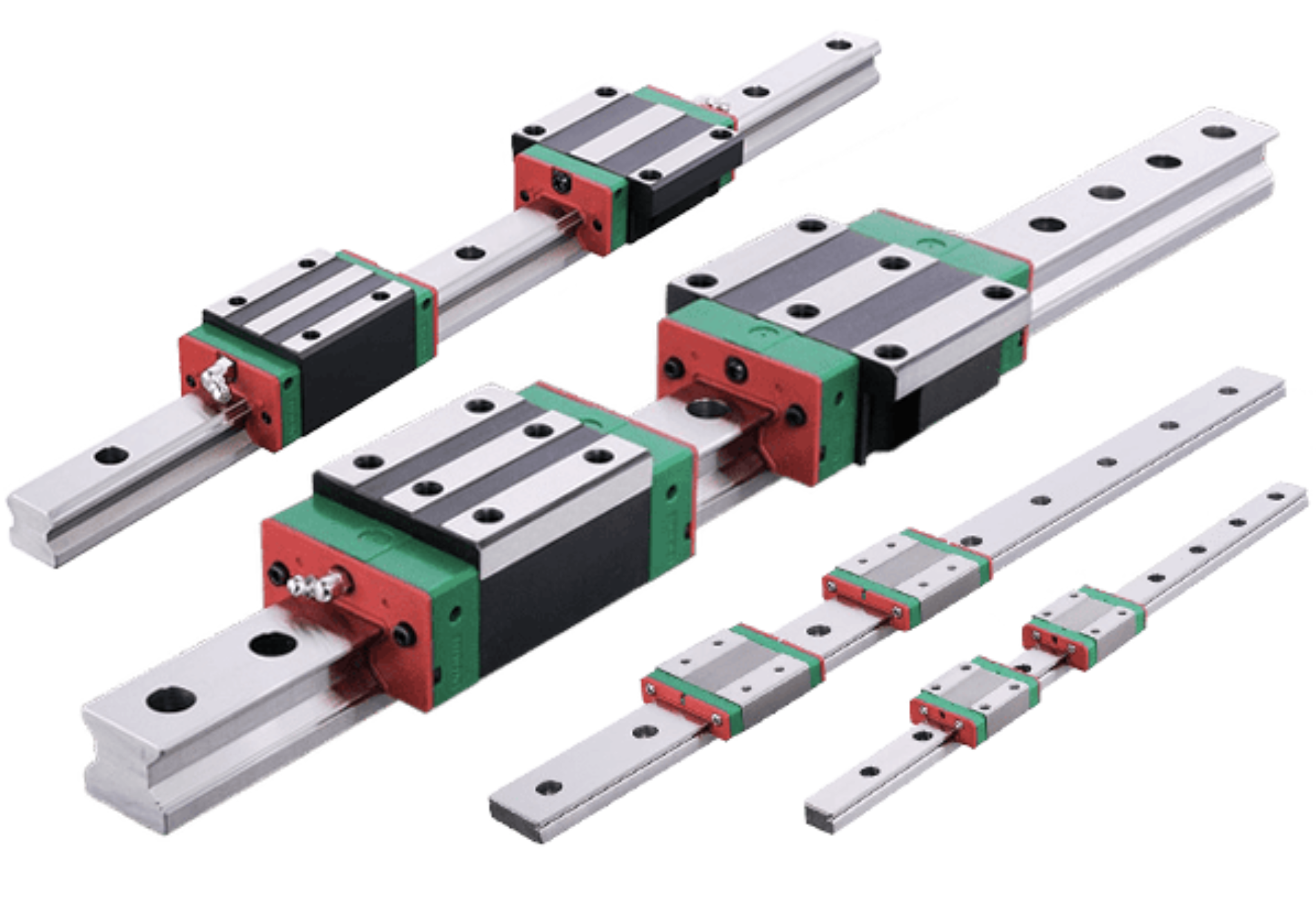

A HIWIN linear guideway consists of a profile rail and a bearing block (carriage). The magic happens within the block, where recirculating rolling elements (balls or rollers) minimize friction to a coefficient of roughly 1/50th of a traditional sliding guide.
Why HIWIN?
Equal Load Capacity: Most series (like the HG and EG) are designed to handle loads in radial, reverse-radial, and lateral directions equally.
Self-Alignment: HIWIN’s circular-arc groove design can absorb small installation errors, ensuring smooth motion even if the mounting surface isn't perfectly flat.
Interchangeability: High manufacturing standards allow you to replace blocks or rails independently while maintaining precision.
2. Choosing the Right Series: A Comparison
Not all linear guides are created equal. Using an oversized rail wastes money and space, while an undersized one leads to premature “pitting“ or failure.
Series Type Primary Feature Best For
HG Ball Heavy load, high rigidity CNC machines, grinding, heavy-duty lathes.
EG Ball Low profile, compact Packaging, high-speed automation, robotics.
RG Roller Extreme rigidity Heavy cutting, high-precision milling.
MG Ball Miniature, stainless steel Medical devices, semiconductor, 3D printers.
WE Ball Wide rail, high moment Single-axis applications with high torque.
Technical Insight: Balls vs. Rollers
The HG series uses steel balls, providing a “point contact“ that excels in speed and lower friction. The RG series uses cylindrical rollers, creating a “line contact.“ This significantly increases the contact area, reducing elastic deformation and making it the “gold standard“ for heavy-duty industrial machining where vibration must be zero.
3. High-Tech Options: SynchMotion™ & Cover Strips
For advanced 2026 applications, two specific HIWIN innovations are worth the investment:
SynchMotion™ (QH/QE/QR Series): These blocks include a “ball separator“ between the rolling elements. This prevents ball-to-ball friction, leading to quieter operation, higher speeds, and longer lubrication intervals.
Cover Strips (CG Series): Traditional rails have mounting holes that can collect dust. The CG series features a stainless steel cover strip that snaps over the rail, providing a completely smooth surface for the seals to glide over, drastically extending life in “dirty“ environments like woodworking.
4. Maintenance: The “100km Rule“
Most end-user failures are not due to load, but lack of lubrication.
Lubrication Schedule
Linear guides should be relubricated every 100km of travel or every 3 to 6 months, whichever comes first. If you are operating in a high-dust environment (e.g., carbon fiber routing), this interval should be halved.
Tips for Longevity:
Check the Wipers: If the rubber end-seals on your block look cracked or worn, replace them immediately. A $10 seal protects a $500 rail system.
Grease Type: Use a lithium-soap-based grease (like HIWIN G05) for general applications. Avoid mixing different types of grease, as chemical incompatibility can cause the lubricant to harden.
Initial Pre-greasing: New blocks often come with only a light coat of anti-rust oil. Always perform an initial lubrication before running the system under load.
5. Avoiding Common Installation Mistakes
Expert experience shows that alignment is everything.
The Master Rail: Always designate one rail as the “master“ and align it to a reference shoulder on your machine bed. The “subsidiary“ rail should then be aligned relative to the master.
Torque Spec: Use a calibrated torque wrench. Over-tightening mounting bolts can slightly deform the rail, causing “binding“ and localized wear.
Parallelism: For a dual-rail setup, parallelism should usually be within 0.01mm to 0.05mm (depending on the series and preload).
Pro Tip: If your machine “shudders“ or makes a clicking sound at certain points, it’s likely a parallelism issue. Loosen the subsidiary rail bolts, run the carriage across the full stroke, and re-tighten.
Conclusion
HIWIN linear guideways offer a versatile, high-performance solution for almost any motion challenge. By matching the series (HG for power, EG for speed, RG for stiffness) to your specific needs and sticking to a rigorous lubrication schedule, you can ensure your machinery operates with micron-level precision for years.
Hard Chrome Plated Rod: Complete Guide for Industrial Applications in India
Introduction
A hard chrome plated rod is a precision-engineered metal shaft coated with a layer of chromium to enhance wear resistance, corrosion protection, and surface hardness. These rods are widely used in hydraulic cylinders, pneumatic systems, automation machinery, and industrial equipment across India.
With growing demand from OEMs, automation companies, and heavy industries, hard chrome rods have become a critical component in ensuring long-lasting performance and reduced maintenance costs.
What is a Hard Chrome Plated Rod?
A hard chrome plated rod is typically manufactured from high-grade carbon steel or alloy steel, which is then coated with electroplated chromium. This process results in:
High surface hardness (typically 850–1100 HV)
Excellent resistance to abrasion and wear
Superior corrosion resistance
Smooth surface finish for precision movement
Key Features & Benefits
1. High Wear Resistance
Hard chrome plating significantly reduces friction, making the rod ideal for continuous motion applications like hydraulic cylinders.
2. Corrosion Protection
The chromium layer protects against rust, moisture, and chemicals, especially in Indian environments with varying humidity.
3. Precision Surface Finish
Mirror-like finishing ensures low friction and smooth operation, improving equipment efficiency.
4. Long Service Life
Reduced wear and corrosion lead to extended lifespan and lower replacement costs.
5. Dimensional Accuracy
Manufactured with tight tolerances, suitable for OEM and automation applications.
Technical Specifications
Typical specifications for hard chrome plated rods include:
Material: C45, SAE 1045
Diameter Range: 6 mm to 200 mm
Length: Up to 6 meters or customized
Surface Roughness: Ra ≤ 0.2 µm
Hardness: 850–1100 HV
Chrome Thickness: 20–22 microns
The manufacturing process involves:
Raw Material Selection – High-quality steel rods
Machining & Grinding – Achieving precise dimensions
Polishing – Preparing surface for plating
Electroplating – Chromium coating applied
Final Grinding & Inspection – Ensuring surface finish and tolerance
This process ensures consistent quality and durability, essential for industrial use.
How to Choose the Right Hard Chrome Rod Supplier in India (EEAT Focus)
When selecting a supplier, consider:
✅ Experience & Expertise
Choose companies with proven experience in industrial automation and hydraulic components.
✅ Quality Standards
Look for ISO-certified manufacturers with strict quality control processes.
✅ Customization Capability
Ensure the supplier can provide custom sizes, tolerances, and finishes.
✅ Availability & Support
Reliable stock availability and after-sales technical support are critical.
✅ Application Knowledge
Suppliers who understand OEM and industrial applications can recommend the best solutions.
Why Hard Chrome Rods Are Essential for Indian Industries
India’s industrial sector demands components that can withstand:
High load conditions
Dust and harsh environments
Continuous operation cycles
Hard chrome plated rods meet these challenges by offering strength, durability, and cost-efficiency, making them indispensable in modern manufacturing.
Key Perodcuts
Hard chrome plated rod India
Chrome plated piston rod suppliers
Hydraulic cylinder rod manufacturers India
Industrial chrome rod price India
EN8D chrome plated rod suppliers Bangalore
Precision chrome shaft for automation
Conclusion
A hard chrome plated rod is a vital component for industries seeking high performance, durability, and precision. Whether used in hydraulic systems, automation equipment, or heavy machinery, these rods ensure smooth operation and long-term reliability.
Roller Chain for Industrial Use: Complete Guide
What is a Roller Chain?
A roller chain is a type of mechanical power transmission component widely used in industrial machinery to transfer motion and load between rotating shafts. It consists of a series of interconnected links with rollers that engage with sprockets, ensuring smooth and efficient movement.
Types of Roller Chains Used in Industry
1. Standard Roller Chains
Used in general machinery and conveyors
Available in simplex, duplex, and triplex configurations
2. Heavy-Duty Roller Chains
Designed for high-load applications
Used in mining, cement, and steel industries
3. Stainless Steel Roller Chains
Corrosion-resistant
Ideal for food processing, pharmaceuticals, and chemical industries
4. Agricultural Roller Chains
Built for dusty and rugged environments
Common in tractors and harvesting equipment
Key Components of a Roller Chain
Inner Plates & Outer Plates – Provide structural strength
Pins – Hold the links together
Bushings – Reduce friction between moving parts
Rollers – Engage with sprockets for smooth motion
Advantages of Roller Chains in Industrial Applications
✔ High Efficiency
Roller chains offer up to 98% transmission efficiency, making them ideal for power transmission.
✔ Durability
Built with hardened steel, they withstand heavy loads and harsh conditions.
✔ Low Maintenance
With proper lubrication, roller chains require minimal upkeep.
✔ Cost-Effective
Compared to belts or gears, chains provide longer service life at lower cost.
Industrial Applications of Roller Chains
Conveyor Systems – Material handling in factories
Packaging Machinery – High-speed operations
Automobile Industry – Assembly line movement
Cement & Steel Plants – Heavy-duty operations
Agriculture Equipment – Harvesters and tractors
How to Select the Right Roller Chain
1. Load Capacity
Choose based on the maximum working load and shock conditions.
2. Speed Requirements
High-speed applications require precision chains with lubrication.
3. Environmental Conditions
Corrosive → Stainless steel
Dusty → Sealed or heavy-duty chains
4. Chain Pitch & Size
Ensure compatibility with sprocket size and machine design.
Maintenance Tips for Longer Life
Regular lubrication reduces wear and friction
Maintain proper chain tension and alignment
Inspect for elongation and wear
Replace worn sprockets along with chains
Frequently Asked Questions (AEO Optimized)
What is the lifespan of a roller chain?
With proper maintenance, a roller chain can last 2–5 years or more, depending on usage and environment.
Which industries use roller chains?
Roller chains are widely used in manufacturing, automotive, agriculture, food processing, and mining industries.
What is the difference between simplex and duplex chains?
Simplex: Single strand for light-duty
Duplex: Double strand for higher load capacity
How do I know when to replace a roller chain?
Replace when there is excessive elongation, noise, vibration, or visible wear.
Why Choose High-Quality Roller Chains?
At IBK Engineers and leading industrial suppliers, high-quality roller chains are sourced from trusted manufacturers and tested for:
Precision engineering standards
Material strength and heat treatment
Performance under Indian industrial conditions
This ensures reliability, safety, and long-term cost savings for OEMs and industrial buyers.
Conclusion
Roller chains are a critical component in industrial automation and machinery, offering unmatched durability, efficiency, and cost-effectiveness. Selecting the right type and maintaining it properly can significantly enhance productivity and reduce downtime.
