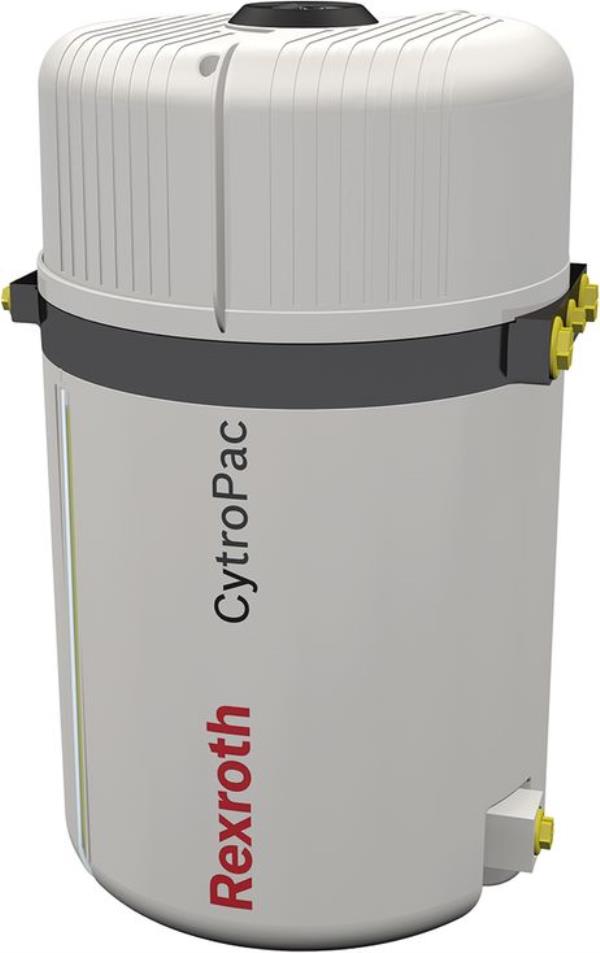

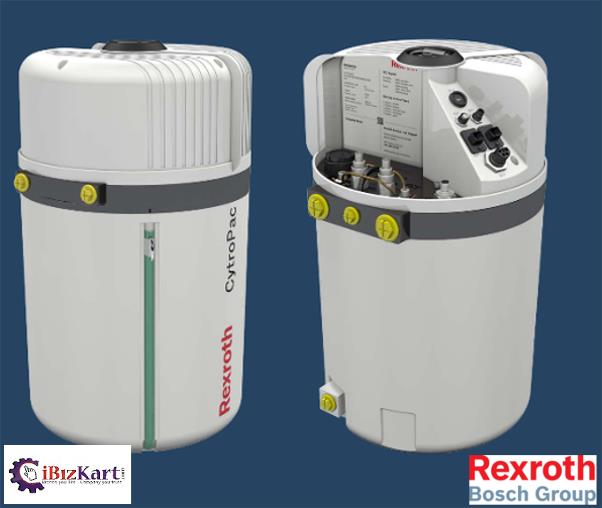

Mini Hydraulic Power Packs Rexroth, High ergonomics for humans at their workplace, Active cooling with separate media without additional piping or space requirement. It is call CytroPac Hydraulic power pack mini
Hydraulic pumps from Rexroth Bosch includes gear pumps, piston pump and vane pumps, hydraulic fittings and flow dividers and intensifies from a dealer supplier in India

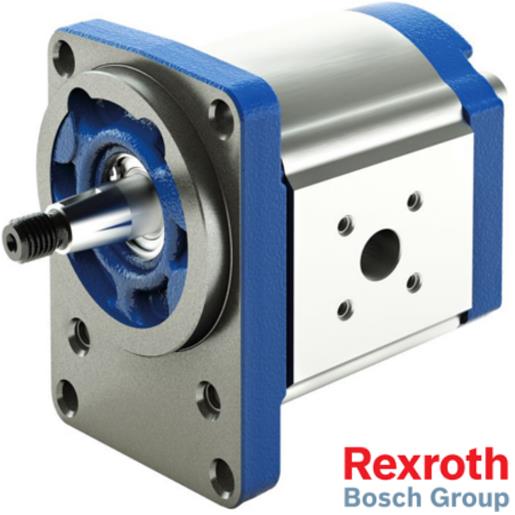

Rexroth Hydraulics external gear pump consists essentially of a pair of gear wheels supported in bearing bushes and the housing with a front and a rear cover.
The drive shaft protrudes from the front cover where it is usually sealed by the shaft seal ring. The bearing forces are absorbed by slide bearings. These are designed for high pressures and have excellent dry-running qualities, especially at low rotational speeds. The gear wheels have 12 teeth. This keeps both flow pulsation and noise emission to a minimum.
Rexroth Hydraulics pump internal sealing of the pressure chambers is achieved by operating pressure-dependent forces. This ensures optimum efficiency. On the outer face, the movable bearing bushes are pressurized with operating pressure and pressed as seals against the gear wheels. Special seals form the boundary of the pressurized zone. The radial sealing at the tips of the gear teeth against the case is provided by smallest possible gaps that are formed pressure-dependent between the gear wheels and the housing.

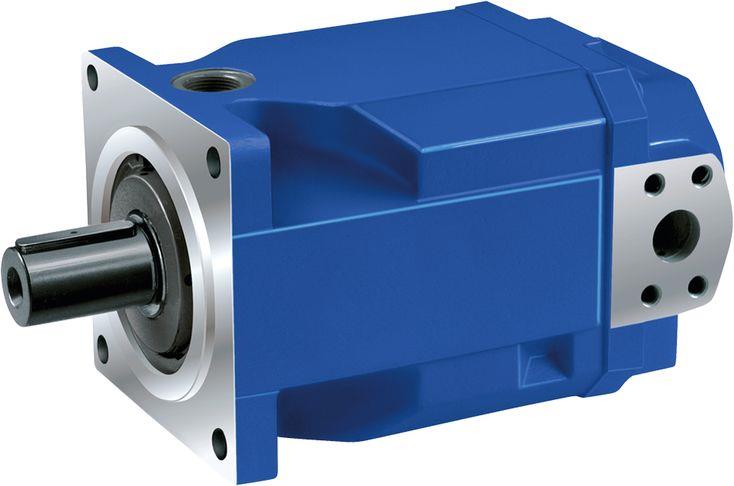

Rexroth axial piston pump is through drive for mounting of further pumps up to same nominal size, Low noise, Very long service life at high pressures, Excellent suction characteristics, Working ports SAE flange, High total efficiency, Swashplate desig
Rexroth Hydraulic direct controlled vale, As screw-in cartridge valve (cartridge) available with For threaded connection, For subplate mounting, Adjustment type for pressure adjustment, optionally. also Sleeve with hexagon and protective cap, Rotary knob, Handwheel, the Lockable rotary knob in stock for fast supply in India call us 9880566644
Mini Hydraulic Power Packs Rexroth, High ergonomics for humans at their workplace, Active cooling with separate media without additional piping or space requirement. It is call CytroPac Hydraulic power pack mini
Compact Hydraulic Power Pack Plug & run, unique selling point, I4.0, wired ready for use with sensors for pressure, temperature, level, filter-clogging and flow rate, sending all current data via Multi-Ethernet interface to the machine control
Rexroth Power Pack Features
Energy Saving Hydraulic Power Pack
Integrated frequency converter
Power 1.5 ... 4.0 kW with identical frame size and
interfaces
The power unit is suitable for S1 operation (continuous
operation)
Early warning signals in case of faults regarding oil
level, temperature, return flow filter and frequency
converter
Plug and run (electrical connection via plug-in
connection)
Integrated cooling for motor and frequency converter,
optionally also for active oil cooling
Noise-reduced design
Integrated oil drain facility Integrated return flow filter
Reduced oil volume due to degassing-optimized tank
Compact design
Prestart Control to reduce the collapse of pressure
Sleep function to reduce the power consumption,
Hydraulic pumps from Rexroth Bosch includes gear pumps, piston pump and vane pumps, hydraulic fittings and flow dividers and intensifies from a dealer supplier in India
