Moisture inside compressed air is a very common problem in small pneumatic cylinders, air grippers, and vacuum systems. Water droplets can cause:
Slow cylinder movement
Gripper sticking or slipping
Corrosion inside valves and actuators
Sensor malfunction
Reduced vacuum performance
Shorter seal life
For small cylinders and pneumatic grippers, especially in high-speed automation, PISCO recommends using quick exhaust and air quality control components close to the actuator.
Why Moisture Forms in Small Cylinders & Grippers?
When compressed air expands rapidly near the actuator, the temperature drops suddenly (adiabatic expansion). This creates condensation or dew inside the air line and exhaust area. PISCO EQJ quick exhaust valves are specially designed to reduce this issue.
What is PISCO EQJ?
The PISCO EQJ Series is a quick-release exhaust valve used near pneumatic cylinders and grippers.
Main benefits:
Faster cylinder speed
Better exhaust flow
Reduced moisture condensation
Compact size for EOAT and robotic grippers
Speed control with exhaust regulation

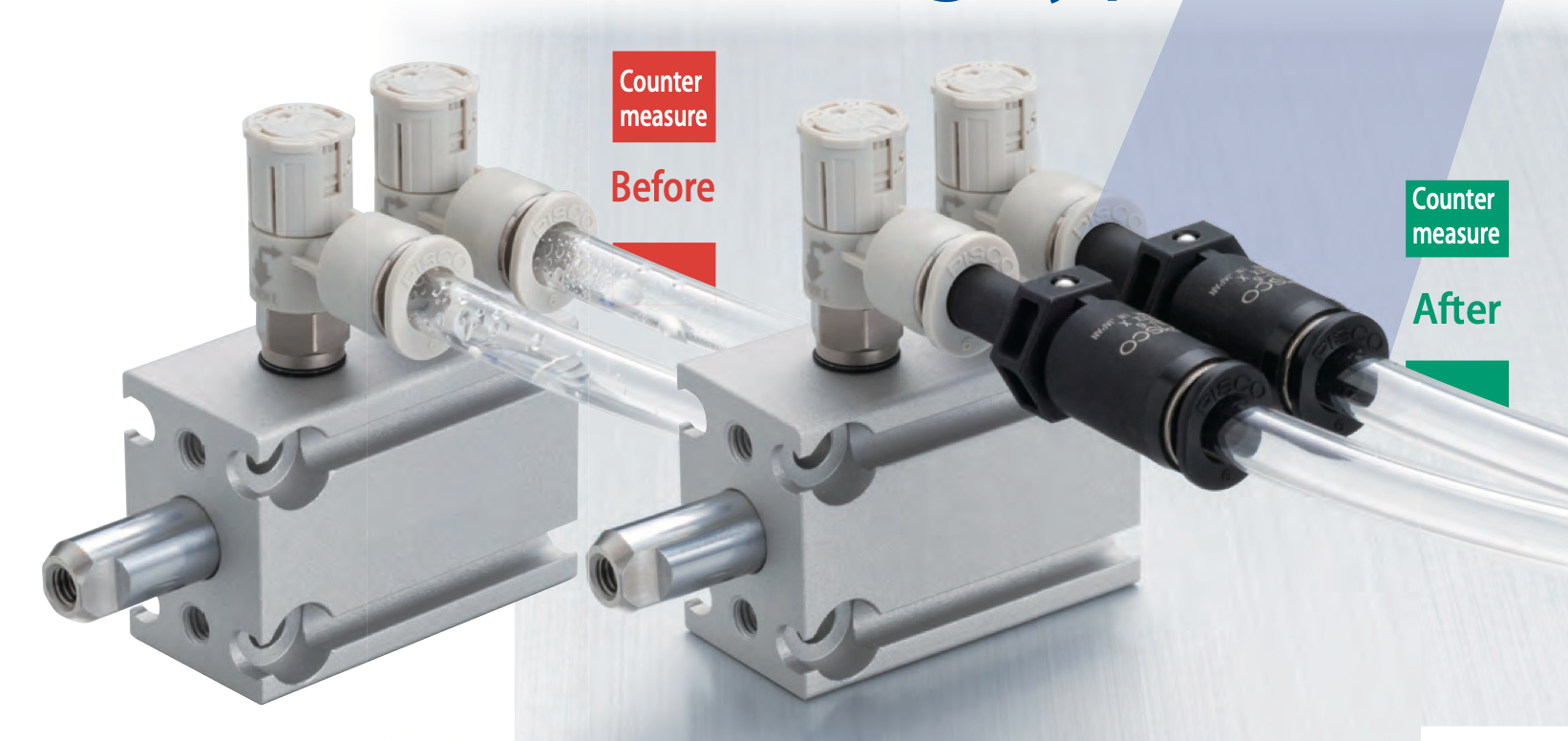

According to PISCO documentation, installing the EQJ near the actuator helps prevent dew condensation caused by adiabatic expansion.
Recommended Moisture Removal Method for Small Cylinders & Grippers
1. Install FRL Unit Before Machine
Use:
Air Filter
Regulator
Moisture Separator
This removes:
Water
Oil mist
Dust particles
Clean compressed air is strongly recommended for pneumatic actuators and grippers.
2. Use PISCO EQJ Near Cylinder or Gripper
Install the EQJ valve directly near:
Mini cylinders
Parallel grippers
Robot EOAT
Vacuum actuators
Benefits:
Exhaust air quickly
Reduce internal condensation
Improve response time
Reduce back pressure
Typical available tube sizes:
4 mm
6 mm
3. Use Dry Air
For precision automation:
Use refrigerated air dryer
Or desiccant air dryer
Recommended dew point:
Below 5°C for normal automation
Below -20°C for electronics or precision systems
4. Drain Compressor Tank Daily
Water inside compressor tanks becomes the biggest moisture source.
Best practice:
Auto drain valve
Daily manual draining
Proper compressor maintenance
5. Use Small Tube Lengths
Long pneumatic tubing increases:
Condensation
Pressure drop
Slow response
Keep:
Tubing short
Proper tube diameter
Minimal bends
6. Use PISCO Vacuum Ejectors Carefully
Vacuum ejectors also create cooling during air expansion. PISCO compact ejectors and vacuum generators are designed for efficient vacuum generation with lower air consumption.
Applications include:
Pick & place robots
Packaging machines
Small vacuum grippers
Electronics handling
Typical Automation Setup
Compressor
↓
Air Dryer
↓
FRL Unit
↓
Solenoid Valve
↓
PISCO EQJ Quick Exhaust Valve
↓
Small Cylinder / Pneumatic Gripper
Best Applications for PISCO EQJ
High-speed pneumatic cylinders
Robot grippers
Compact automation machines
Semiconductor handling
Packaging automation
Electronics assembly
Vacuum pick-and-place systems
Advantages of Using PISCO EQJ
Feature Benefit
Quick exhaust Faster actuator movement
Reduced condensation Longer component life
Compact design Easy mounting near EOAT
Speed control Better motion tuning
Lower back pressure Improved gripper performance
Important Maintenance Tips
Always use clean compressed air
Replace filters regularly
Check drain condition weekly
Avoid water entering vacuum lines
Inspect tubing leakage
Use proper operating pressure (typically 3–7 bar)
For compact robotic automation and small pneumatic grippers, combining:
PISCO Air dryer
PISCO FRL unit
PISCO EQJ
PISCO Proper tubing
is one of the best ways to reduce moisture problems and improve machine reliability.
